Data Model Operators

In previous lessons, you learned to create branches where some outputs can be None. How do we combine these outputs? This lesson introduces operators for merging and manipulating data models.

The Five Operators

graph LR
    subgraph Operators
        CONCAT["A + B: Concatenate"]
        AND["A & B: Safe Merge"]
        OR["A | B: First Non-None"]
        XOR["A ^ B: Exclusive"]
        NOT["~A: Cancel"]
    end

Synalinks provides five Python operators for data models:

Operator	Name	Behavior
`+`	Concatenation	Merge fields (fails if either is None)
`&`	Logical AND	Safe merge (returns None if either is None)
`\|`	Logical OR	Returns first non-None, or merges if both exist
`^`	Logical XOR	Returns data only if exactly ONE is non-None
`~`	NOT (Invert)	Converts data to None

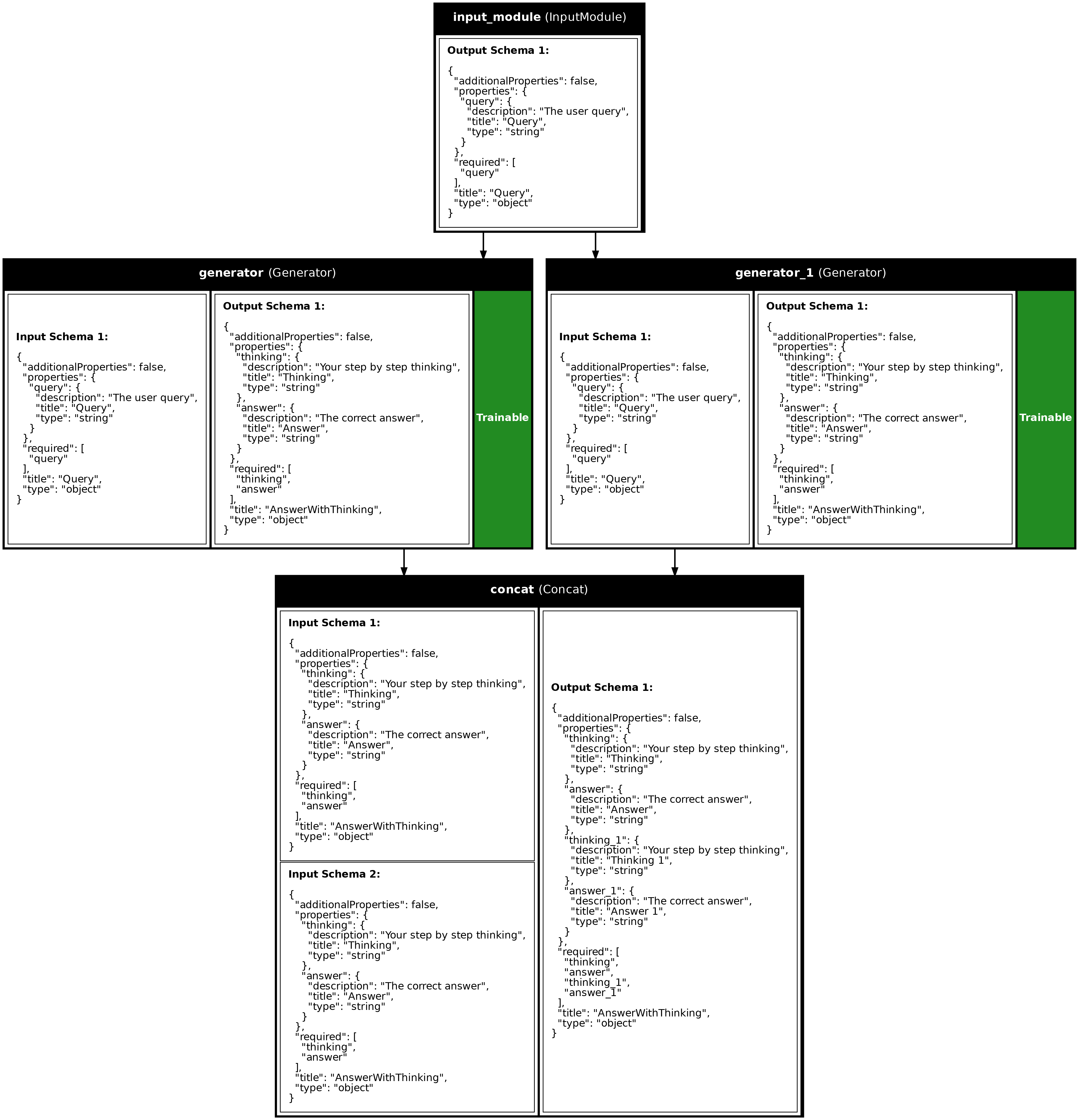

1. Concatenation (`+`)

Combines fields from two data models into one:

answer = Answer(answer="42")           # {"answer": "42"}
thinking = Thinking(thinking="...")    # {"thinking": "..."}

combined = answer + thinking  # {"answer": "42", "thinking": "..."}

Warning: Raises an exception if either operand is None!

2. Logical AND (`&`)

Safe concatenation - returns None if either input is None:

result = data & possibly_none  # None if possibly_none is None

3. Logical OR (`|`)

Returns non-None value, or merges if both have data:

(easy_result, hard_result) = await Branch(...)(inputs)
final = easy_result | hard_result  # Gets whichever has data

4. Logical XOR (`^`)

Returns data only if exactly one operand is non-None:

result = a ^ b
# If a has data and b is None: returns a
# If a is None and b has data: returns b
# If both have data: returns None
# If both are None: returns None

5. NOT / Invert (`~`)

Converts any data to None:

result = ~data  # Always returns None

Useful for conditional flows where you want to "cancel" a path.

Truth Table

A	B	A `+` B	A `&` B	A `\|` B	A `^` B
Data	Data	Merged	Merged	Merged	`None`
Data	`None`	`ERROR`	`None`	A	A
`None`	Data	`ERROR`	`None`	B	B
`None`	`None`	`ERROR`	`None`	`None`	`None`

A	`~`A
Data	`None`
None	`None`*

*Note: ~None behavior depends on context (symbolic vs json)

Complete Example: Merging Branch Outputs

import asyncio
from dotenv import load_dotenv
import synalinks

class Query(synalinks.DataModel):
    query: str = synalinks.Field(description="The user query")

class Answer(synalinks.DataModel):
    answer: str = synalinks.Field(description="The correct answer")

async def main():
    load_dotenv()
    language_model = synalinks.LanguageModel(model="gemini/gemini-3.1-flash-lite-preview")

    inputs = synalinks.Input(data_model=Query)

    # Branch returns (easy_result, hard_result) - only ONE is non-None
    (easy, hard) = await synalinks.Branch(
        question="Evaluate difficulty",
        labels=["easy", "difficult"],
        language_model=language_model,
        branches=[
            synalinks.Generator(data_model=Answer, language_model=language_model),
            synalinks.Generator(data_model=Answer, language_model=language_model),
        ],
    )(inputs)

    # Use | to get whichever branch was active
    outputs = easy | hard

    program = synalinks.Program(inputs=inputs, outputs=outputs)

    result = await program(Query(query="What is 2 + 2?"))
    print(f"Answer: {result['answer']}")  # Gets the non-None result

asyncio.run(main())

Key Takeaways

Concat (+): Merge all fields from two data models into one. Both inputs must have data (no None).
OR (|): Returns the first non-None input. Perfect for merging conditional branch outputs.
AND (&): Returns data only if both inputs have data; otherwise returns None.
XOR (^): Returns data only if exactly one input has data; returns None if both or neither have data.
NOT (~): Always returns None. Useful for canceling paths in conditional flows.

Program Visualizations

API References

`Answer`

Bases: DataModel

A simple answer.

Source code in examples/5a_data_model_operators.py

class Answer(synalinks.DataModel):
    """A simple answer."""

    answer: str = synalinks.Field(description="The correct answer")

`AnswerWithThinking`

Bases: DataModel

An answer with reasoning.

Source code in examples/5a_data_model_operators.py

class AnswerWithThinking(synalinks.DataModel):
    """An answer with reasoning."""

    thinking: str = synalinks.Field(description="Your step by step thinking")
    answer: str = synalinks.Field(description="The correct answer")

`Critique`

Bases: DataModel

A critique of an answer.

Source code in examples/5a_data_model_operators.py

class Critique(synalinks.DataModel):
    """A critique of an answer."""

    critique: str = synalinks.Field(description="The critique of the answer")

`Query`

Bases: DataModel

A user query.

Source code in examples/5a_data_model_operators.py

class Query(synalinks.DataModel):
    """A user query."""

    query: str = synalinks.Field(description="The user query")

Source

import asyncio

from dotenv import load_dotenv

import synalinks

# =============================================================================
# STEP 1: Define Data Models
# =============================================================================


class Query(synalinks.DataModel):
    """A user query."""

    query: str = synalinks.Field(description="The user query")


class Answer(synalinks.DataModel):
    """A simple answer."""

    answer: str = synalinks.Field(description="The correct answer")


class AnswerWithThinking(synalinks.DataModel):
    """An answer with reasoning."""

    thinking: str = synalinks.Field(description="Your step by step thinking")
    answer: str = synalinks.Field(description="The correct answer")


class Critique(synalinks.DataModel):
    """A critique of an answer."""

    critique: str = synalinks.Field(description="The critique of the answer")


# =============================================================================
# STEP 2: Demonstrate the Operators
# =============================================================================


async def main():
    load_dotenv()

    # Enable observability for tracing (view traces at http://localhost:5000)
    synalinks.enable_observability(
        tracking_uri="http://localhost:5000",
        experiment_name="lesson_5a_data_model_operators",
    )

    language_model = synalinks.LanguageModel(
        model="gemini/gemini-3.1-flash-lite-preview",
    )

    # =========================================================================
    # EXAMPLE 1: Concatenation Operator (+)
    # =========================================================================
    print("=" * 60)
    print("Example 1: Concatenation Operator (+)")
    print("=" * 60)
    print("Combines fields from two data models into one.\n")

    inputs = synalinks.Input(data_model=Query)

    # Two parallel generators
    answer_1 = await synalinks.Generator(
        data_model=Answer,
        language_model=language_model,
        name="answer_generator",
    )(inputs)
    critique_1 = await synalinks.Generator(
        data_model=Critique,
        language_model=language_model,
        name="critique_generator",
    )(inputs)

    # Concatenate results - merges all fields
    outputs = answer_1 + critique_1

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="concatenation",
        description="Demonstrates field concatenation",
    )

    synalinks.utils.plot_program(program, to_folder="examples", show_module_names=True)

    # Test it
    result = await program(Query(query="What is 2 + 2?"))
    print("Combined result fields:", list(result.keys()))
    print(f"  answer: {result['answer'][:50]}...")
    print(f"  critique: {result['critique'][:50]}...")

    # =========================================================================

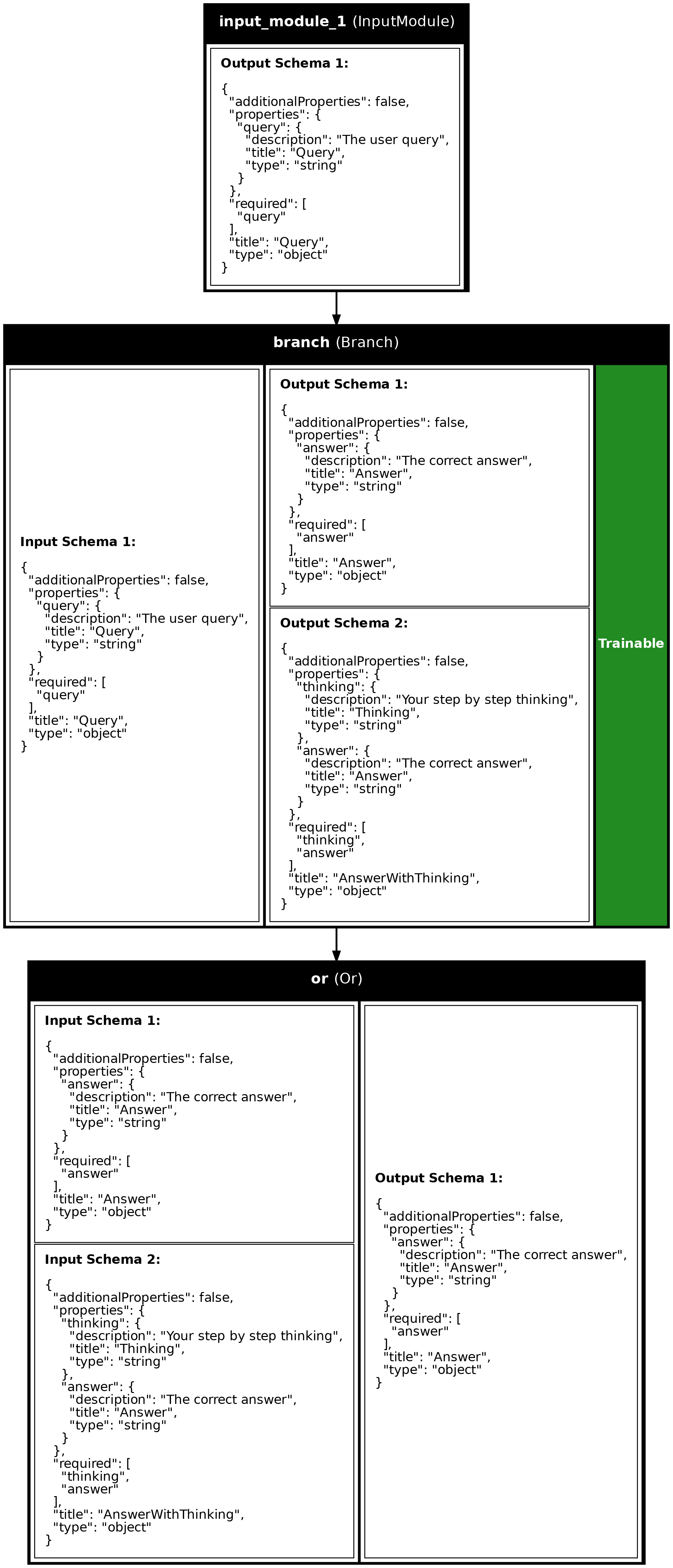

    # EXAMPLE 2: Logical OR Operator (|) - Merging Branch Outputs
    # =========================================================================
    print("\n" + "=" * 60)
    print("Example 2: Logical OR Operator (|)")
    print("=" * 60)
    print("Returns the first non-None value. Perfect for branches!\n")

    inputs = synalinks.Input(data_model=Query)

    # Branch returns (easy_result, hard_result) - only ONE is non-None
    (easy, hard) = await synalinks.Branch(
        question="Evaluate the difficulty to answer the query",
        labels=["easy", "difficult"],
        language_model=language_model,
        branches=[
            synalinks.Generator(
                data_model=Answer,
                language_model=language_model,
            ),
            synalinks.Generator(
                data_model=AnswerWithThinking,
                language_model=language_model,
            ),
        ],
        return_decision=False,
    )(inputs)

    # Use | to get whichever branch was active
    outputs = easy | hard

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="logical_or",
        description="Demonstrates merging branch outputs",
    )

    synalinks.utils.plot_program(program, to_folder="examples", show_module_names=True)

    # Test with easy query
    result = await program(Query(query="What is 1 + 1?"))
    print("Easy query result:", result["answer"][:50] if result else "None")

    # =========================================================================
    # EXAMPLE 3: Logical AND Operator (&) - Safe Concatenation
    # =========================================================================
    print("\n" + "=" * 60)
    print("Example 3: Logical AND Operator (&)")
    print("=" * 60)
    print("Safe merge - returns None if either input is None.\n")

    inputs = synalinks.Input(data_model=Query)

    # Branch with potentially None outputs
    (easy, hard) = await synalinks.Branch(
        question="Evaluate the difficulty to answer the query",
        labels=["easy", "difficult"],
        language_model=language_model,
        branches=[
            synalinks.Generator(data_model=Answer, language_model=language_model),
            synalinks.Generator(
                data_model=AnswerWithThinking, language_model=language_model
            ),
        ],
        return_decision=False,
    )(inputs)

    # Safe concatenation with inputs - won't fail if branch output is None
    easy_with_query = inputs & easy
    hard_with_query = inputs & hard

    # Add critique to each branch (if active)
    easy_critique = await synalinks.Generator(
        data_model=Critique,
        language_model=language_model,
        return_inputs=True,
    )(easy_with_query)
    hard_critique = await synalinks.Generator(
        data_model=Critique,
        language_model=language_model,
        return_inputs=True,
    )(hard_with_query)

    # Merge branch outputs with |
    outputs = easy_critique | hard_critique

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="logical_and",
        description="Demonstrates safe concatenation with branches",
    )

    synalinks.utils.plot_program(program, to_folder="examples", show_module_names=True)

    print("Pattern: Branch -> Safe concat (&) -> Process -> Merge (|)")

    # =========================================================================
    # EXAMPLE 4: NOT Operator (~) - Inverting Data
    # =========================================================================
    print("\n" + "=" * 60)
    print("Example 4: NOT Operator (~)")
    print("=" * 60)
    print("Converts any data to None. Useful for conditional cancellation.\n")

    # Demonstrate NOT with actual data
    sample_data = Answer(answer="42")
    inverted = ~sample_data
    print(f"Original: {sample_data}")
    print(f"After ~: {inverted}")

    # =========================================================================
    # EXAMPLE 5: XOR Operator (^) - Exclusive Or
    # =========================================================================
    print("\n" + "=" * 60)
    print("Example 5: XOR Operator (^)")
    print("=" * 60)
    print("Returns data only if exactly ONE operand is non-None.\n")

    data_a = Answer(answer="Answer A")
    data_b = Answer(answer="Answer B")

    # XOR truth table demonstration
    print("XOR Truth Table:")
    print(f"  data ^ None = has data: {(data_a ^ None) is not None}")
    print(f"  None ^ data = has data: {(None ^ data_b) is not None}")
    print(f"  data ^ data = is None: {(data_a ^ data_b) is None}")


if __name__ == "__main__":
    asyncio.run(main())
