Control Flow

Controlling the flow of information in a program is an essential feature of any LM framework. In Synalinks, we implemented it in circuit-like fashion, where the flow of information can be conditionaly or logically restricted to only flow in a subset of a computation graph.

Parallel Branches

To create parallel branches, all you need to do is using the same inputs when declaring the modules. Then Synalinks will automatically detect them and run them in parrallel with asyncio.

import synalinks
import asyncio

class Query(synalinks.DataModel):
    query: str = synalinks.Field(
        description="The user query",
    )

class AnswerWithThinking(synalinks.DataModel):
    thinking: str = synalinks.Field(
        description="Your step by step thinking",
    )
    answer: str = synalinks.Field(
        description="The correct answer",
    )

async def main():
    inputs = synalinks.Input(data_model=Query)
    x1 = await synalinks.Generator(
        data_model=AnswerWithThinking,
        language_model=language_model,
    )(inputs)
    x2 = await synalinks.Generator(
        data_model=AnswerWithThinking,
        language_model=language_model,
    )(inputs)
    outputs = [x1, x2]

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="parallel_branches",
        description="Illustrate the use of parallel branching",
    )

    synalinks.utils.plot_program(
        program,
        to_folder="examples/control_flow",
        show_module_names=True,
        show_schemas=True,
        show_trainable=True,
    )

if __name__ == "__main__":
    asyncio.run(main())

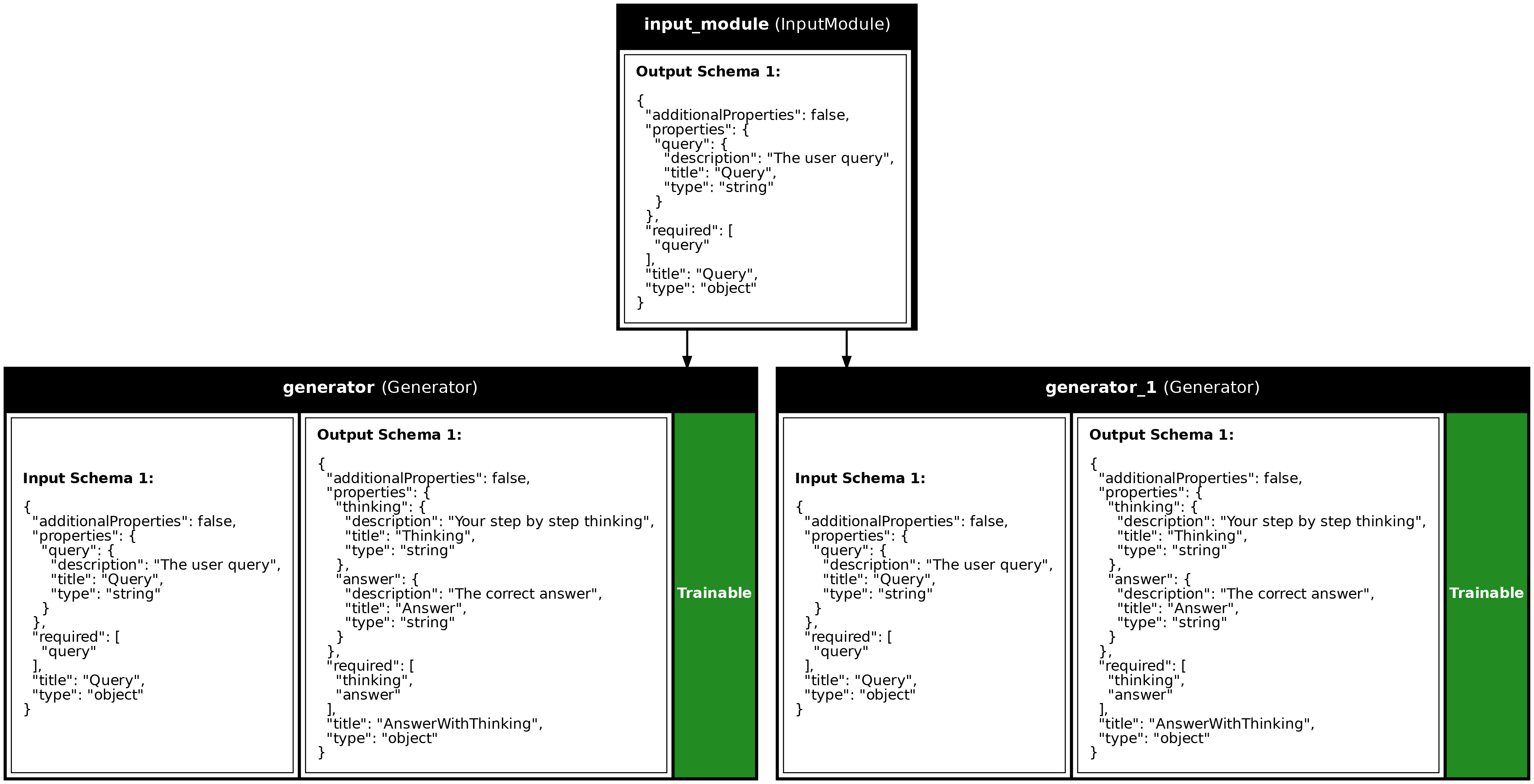

parralel_branches

Decisions

Decisions in Synalinks can be viewed as a single label classification, they allow the system to classify the inputs based on a question and labels to choose from. The labels are used to create on the fly a Enum schema that ensure, thanks to constrained structured output, that the system will answer one of the provided labels.

This module is the basis of robust control flow in Synalinks.

async def main():
    inputs = synalinks.Input(data_model=Query)
    outputs = await synalinks.Decision(
        question="Evaluate the difficulty to answer the provided query",
        labels=["easy", "difficult"],
        language_model=language_model,
    )(inputs)

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="decision_making",
        description="Illustrate the decision making process",
    )

if __name__ == "__main__":
    asyncio.run(main())

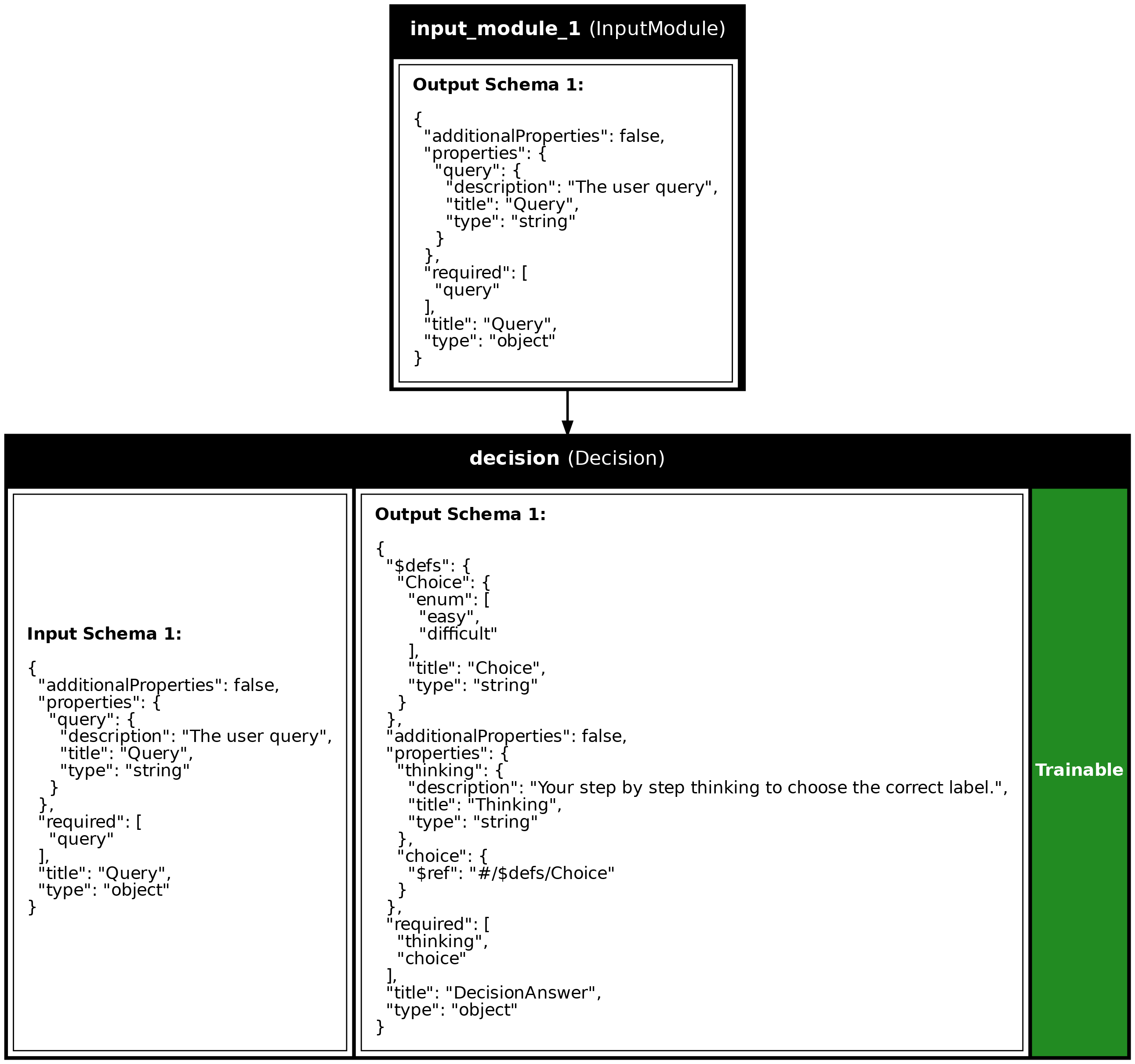

decision_making

Conditional Branches

To make conditional branches, we will need the help of a core module: The Branch module. This module use a decision and route the input data model to the selected branch. When a branch is not selected, that branch output a None.

class Answer(synalinks.DataModel):
    answer: str = synalinks.Field(
        description="The correct answer",
    )

async def main():
    inputs = synalinks.Input(data_model=Query)
    (x1, x2) = await synalinks.Branch(
        question="Evaluate the difficulty to answer the provided query",
        labels=["easy", "difficult"],
        branches=[
            synalinks.Generator(
                data_model=Answer,
                language_model=language_model,
            ),
            synalinks.Generator(
                data_model=AnswerWithThinking,
                language_model=language_model,
            ),
        ],
    )(inputs)
    outputs = [x1, x2]

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="conditional_branches",
        description="Illustrate the conditional branches",
    )

if __name__ == "__main__":
    asyncio.run(main())

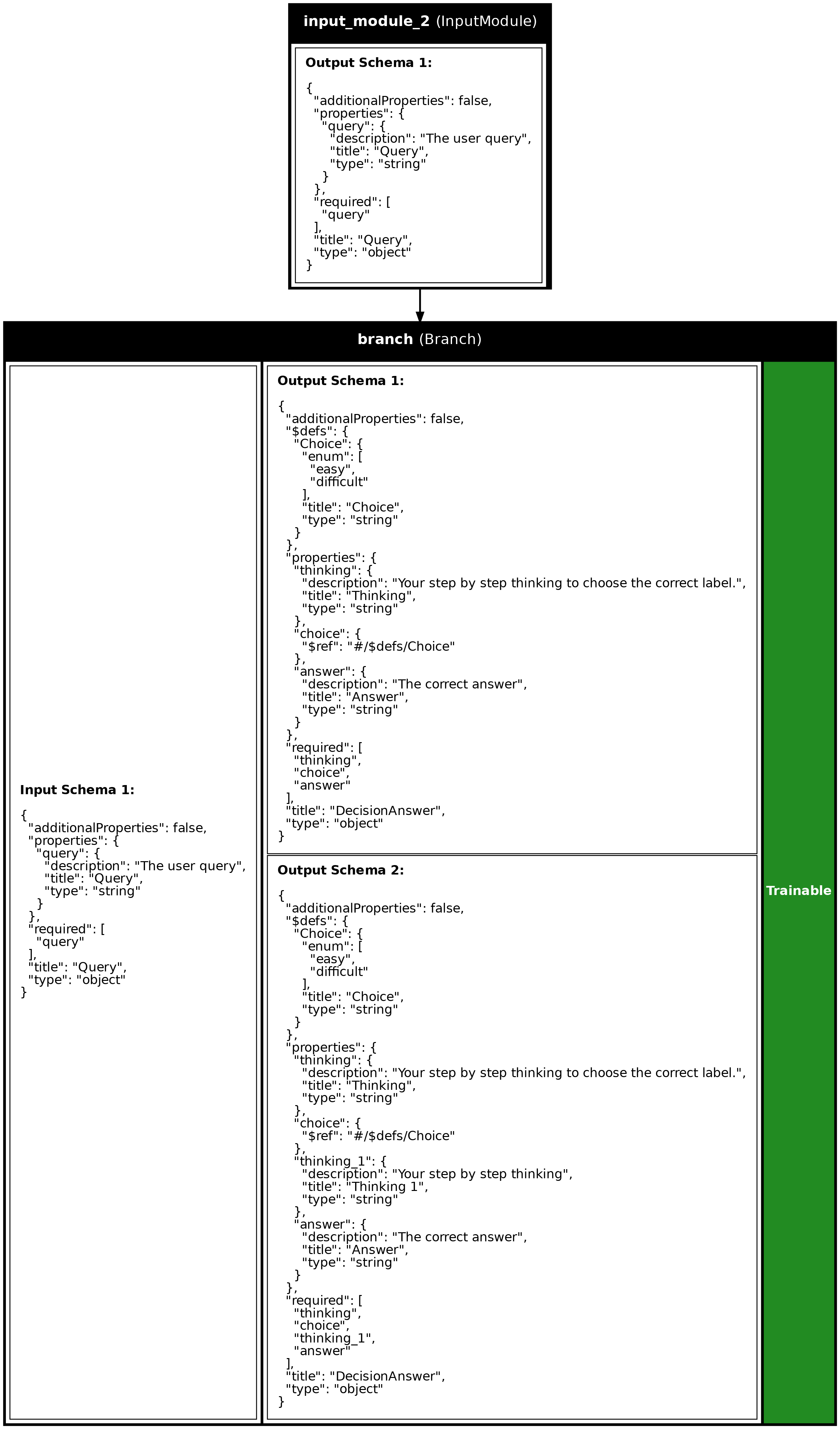

conditional_branches

Data Models Operators

Synalinks implement Python operators that works with data models, some of them are straightforward, like the concatenation, implemented in the Python + operator. But others like the logical_and and logical_or implemented respectively in the & and | operator are more difficult to grasp at first. As explained above, in the conditional branches, the branch not selected will have a None as output. To account that fact and to implement logical flows, we need operators that can work with them. See the Ops API section for an extensive list of all data model operations.

Concatenation

The concatenation, consist in creating a data model that have the fields of both inputs. When one of the input is None, it raise an exception. Note that you can use the concatenation, like any other operator, at a meta-class level, meaning you can actually concatenate data model types.

Concatenation Table

x1 x2 Concat (+)
x1 x2 x1 + x2
x1 None Exception
None x2 Exception
None None Exception

Concatenation Example

async def main():
    inputs = synalinks.Input(data_model=Query)
    x1 = await synalinks.Generator(
        data_model=AnswerWithThinking,
        language_model=language_model,
    )(inputs)
    x2 = await synalinks.Generator(
        data_model=AnswerWithThinking,
        language_model=language_model,
    )(inputs)
    outputs = x1 + x2

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="concatenation",
        description="Illustrate the use of concatenate",
    )

if __name__ == "__main__":
    asyncio.run(main())

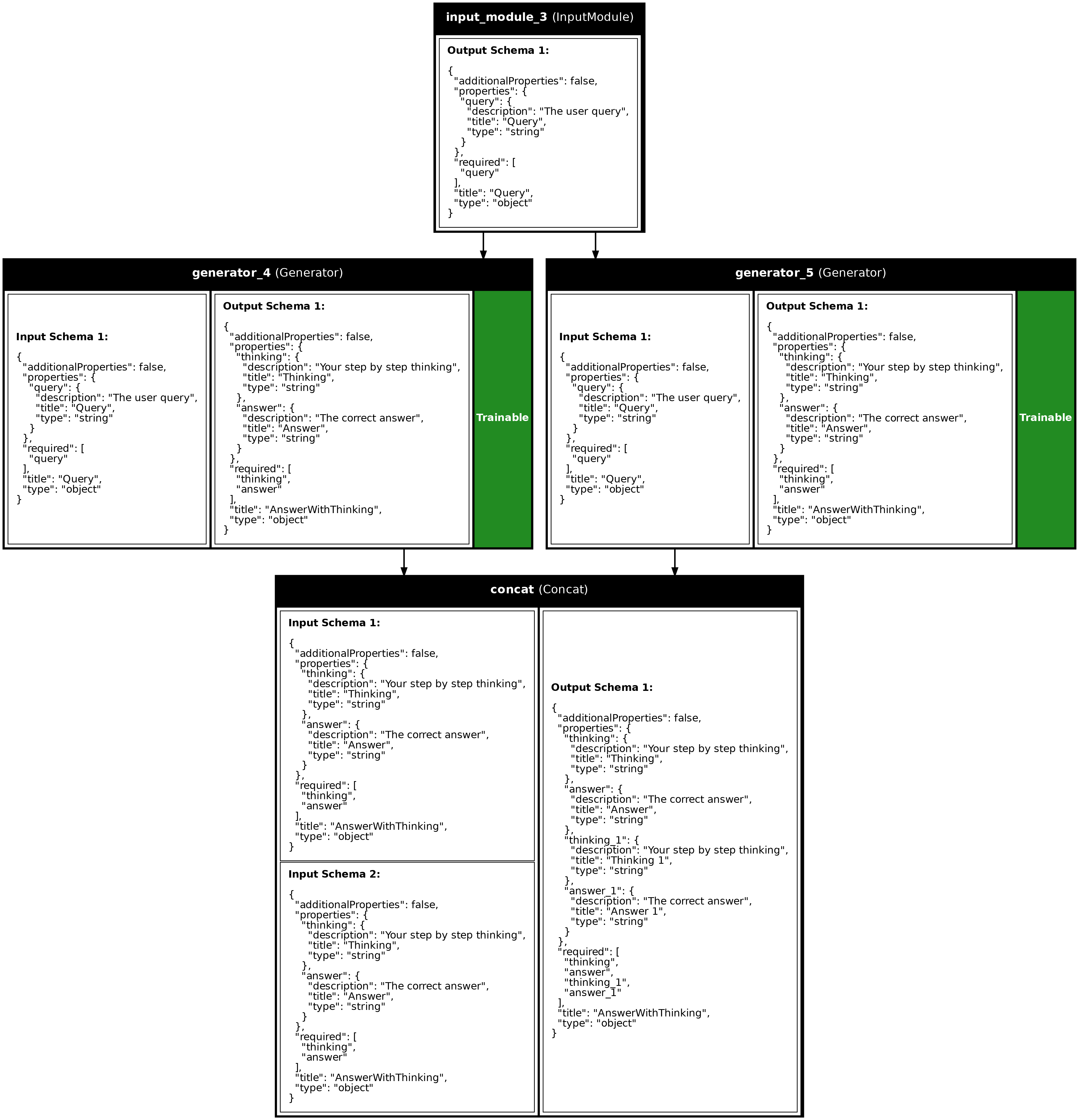

concatenation

Logical And

The logical_and is a concatenation that instead of raising an Exception, output a None. This operator should be used, when you have to concatenate a data model with an another one that can be None, like a Branch output.

Logical And Table

x1 x2 Logical And (&)
x1 x2 x1 + x2
x1 None None
None x2 None
None None None

Logical And Example

class Critique(synalinks.DataModel):
    critique: str = synalinks.Field(
        description="The critique of the answer",
    )

async def main():
    inputs = synalinks.Input(data_model=Query)
    (x1, x2) = await synalinks.Branch(
        question="Evaluate the difficulty to answer the provided query",
        labels=["easy", "difficult"],
        branches=[
            synalinks.Generator(
                data_model=Answer,
                language_model=language_model,
            ),
            synalinks.Generator(
                data_model=AnswerWithThinking,
                language_model=language_model,
            ),
        ],
        return_decision=False,
    )(inputs)
    x3 = x0 & x1
    x4 = x0 & x2
    x5 = await synalinks.Generator(
        data_model=Critique,
        language_model=language_model,
        return_inputs=True,
    )(x3)
    x6 = await synalinks.Generator(
        data_model=Critique,
        language_model=language_model,
        return_inputs=True,
    )(x4)
    x7 = x5 | x6
    outputs = await synalinks.Generator(
        data_model=Answer,
        language_model=language_model,
    )(x7)

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="logical_and",
        description="Illustrate the use of logical and",
    )

logical_and

Logical Or

The logical_or is used when you want to combine two data models, but you can accomodate that one of them is None. Another use, is to gather the outputs of a Branch, as only one branch is active, it allows you merge the branches outputs into a unique data model.

Logical Or Table

x1 x2 Logical Or (|)
x1 x2 x1 + x2
x1 None x1
None x2 x2
None None None

Logical Or Example

async def main():
    inputs = synalinks.Input(data_model=Query)
    (x1, x2) = await synalinks.Branch(
        question="Evaluate the difficulty to answer the provided query",
        labels=["easy", "difficult"],
        branches=[
            synalinks.Generator(
                data_model=Answer,
                language_model=language_model,
            ),
            synalinks.Generator(
                data_model=AnswerWithThinking,
                language_model=language_model,
            ),
        ],
        return_decision=False,
    )(x0)
    outputs = x1 | x2

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="logical_or",
        description="Illustrate the use of logical or",
    )

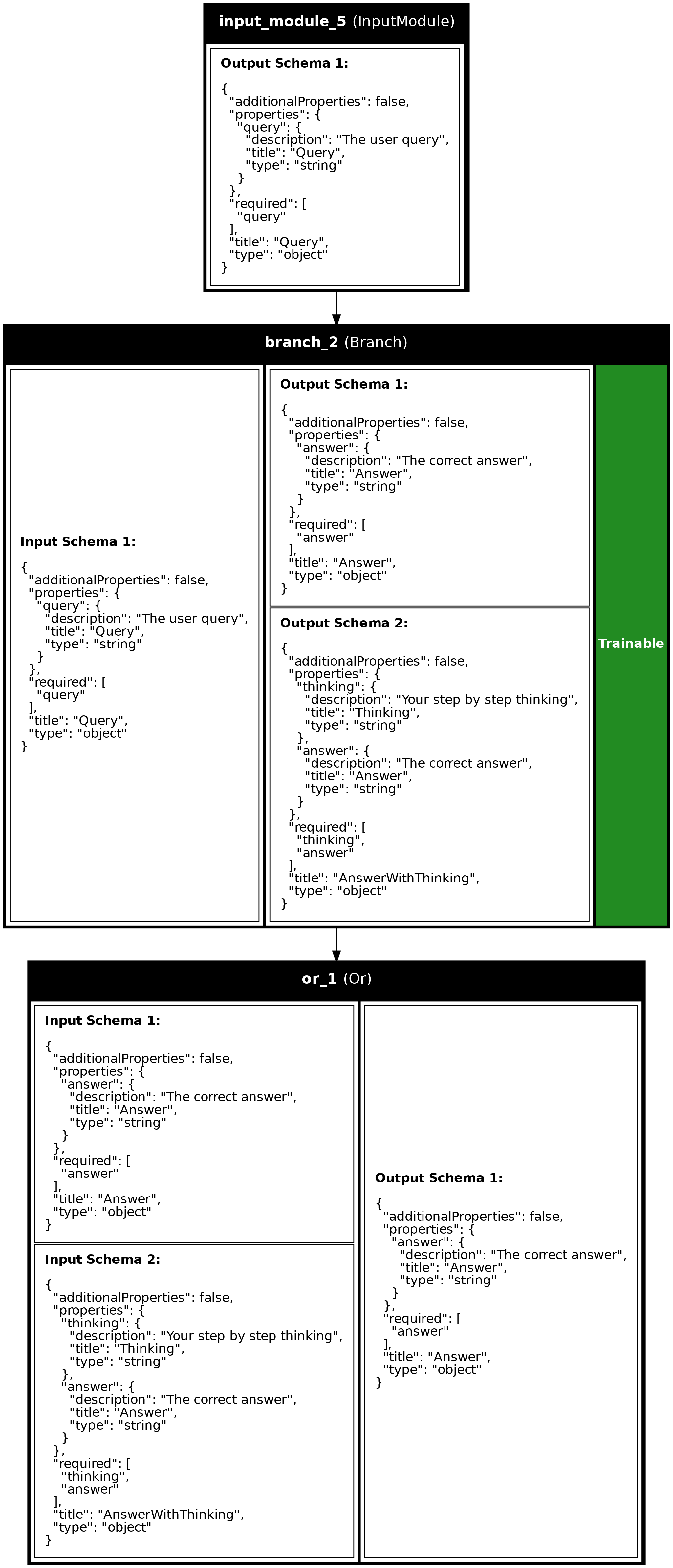

logical_or

Conclusion

In this tutorial, we explored the fundamental concepts of controlling information flow within Synalinks programs. We introduced the creation of parallel branches, decision-making processes, and conditional branching, all of which are essential for building dynamic and robust applications.

Key Takeaways

  • Parallel Branches: We demonstrated how to run modules in parallel using the same inputs, leveraging asyncio for concurrent execution. This approach enhances performance and allows for simultaneous processing of tasks.

  • Decision-Making: We introduced decision-making as a form of single-label classification, enabling the system to classify inputs based on predefined questions and labels. This ensures that the system's responses are structured and adhere to the specified schemas.

  • Conditional Branching: We explored the use of the Branch module to route input data models based on decisions, allowing for conditional execution of branches. This feature is essential for creating adaptive and context-aware applications.

  • Data Model Operators: We discussed various data model operators, such as concatenation, logical_and, and logical_or. These operators enable sophisticated data manipulation and flow control, ensuring robust program execution even when branches output None.
