More plotting utilities
plot_history(history, to_file='training_history.png', to_folder=None, xlabel='Epochs', ylabel='Scores', title='Training history', grid=True, metrics_filter=None, **kwargs)
Plots the training history of a program and saves it to a file.
Code Example:
Example:
Parameters:
Name | Type | Description | Default |
---|---|---|---|
history
|
History
|
The training history. |
required |
to_file
|
str
|
The file path where the plot will be saved. Default to "training_history.png". |
'training_history.png'
|
to_folder
|
str
|
The folder where the plot will be saved. If provided, will be combined with to_file. |
None
|
xlabel
|
str
|
Optional. The label for the x-axis. Default to "Epochs". |
'Epochs'
|
ylabel
|
str
|
Optional. The label for the y-axis. Default to "Scores". |
'Scores'
|
title
|
str
|
Optional. The title of the plot. Default to "Training history". |
'Training history'
|
grid
|
bool
|
Whether to display the grid on the plot. Default to True. |
True
|
metrics_filter
|
list
|
List of specific metrics to plot. If None, all metrics will be plotted. |
None
|
**kwargs
|
keyword arguments
|
Additional keyword arguments
forwarded to |
{}
|
Raises:
Type | Description |
---|---|
ValueError
|
If there are unrecognized keyword arguments. |
Returns:
Type | Description |
---|---|
Image | Image | str
|
If running in a Jupyter notebook, returns an IPython Image object for inline display. If running in a Marimo notebook returns a marimo image. Otherwise returns the filepath where the image has been saved. |
Source code in synalinks/src/utils/plot_history.py
13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 |
|
plot_history_comparison(history_dict, to_file='training_history_comparison.png', to_folder=None, xlabel='Epochs', ylabel='Scores', title='Training History Comparison', grid=True, metrics_filter=None, linestyle_cycle=None, **kwargs)
Plots comparison of training histories across different conditions/models.
Code Example:
import synalinks
import asyncio
NB_RUN = 5
async def main():
# ... program definition
program.compile(...)
history_list = []
for i in range(NB_RUN):
history = await program.fit(...)
history_list.append(history)
# ... program_1 definition
program_1.compile(...)
history_list_1 = []
for i in range(NB_RUN):
history = await program.fit(...)
history_list_1.append(history)
history_comparaison = {
"program_a": history_list
"program_b: history_list_1
}
synalinks.utils.plot_history_comparison(history_comparison)
Parameters:
Name | Type | Description | Default |
---|---|---|---|
history_dict
|
dict
|
Dictionary where keys are condition names (e.g., model names) and values are History objects. Format: {"condition1": history1, "condition2": history2, ...} |
required |
to_file
|
str
|
The file path where the plot will be saved. Default to "training_history_comparison.png". |
'training_history_comparison.png'
|
to_folder
|
str
|
The folder where the plot will be saved. If provided, will be combined with to_file. |
None
|
xlabel
|
str
|
Optional. The label for the x-axis. Default to "Epochs". |
'Epochs'
|
ylabel
|
str
|
Optional. The label for the y-axis. Default to "Scores". |
'Scores'
|
title
|
str
|
Optional. The title of the plot (Default to "Training History Comparison"). |
'Training History Comparison'
|
grid
|
bool
|
Whether to display the grid on the plot. Default to True. |
True
|
metrics_filter
|
list
|
List of specific metrics to plot. If None, all metrics will be plotted. |
None
|
linestyle_cycle
|
list
|
List of line styles to cycle through for conditions (Default to ['-', '--', '-.', ':']). |
None
|
**kwargs
|
keyword arguments
|
Additional keyword arguments
forwarded to |
{}
|
Raises:
Type | Description |
---|---|
ValueError
|
If history_dict is empty, has inconsistent metric names, or if there are unrecognized keyword arguments. |
Returns:
Type | Description |
---|---|
Image | Image | str
|
If running in a Jupyter notebook, returns an IPython Image object for inline display. If running in a Marimo notebook returns a marimo image. Otherwise returns the filepath where the image has been saved. |
Source code in synalinks/src/utils/plot_history.py
281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 |
|
plot_history_comparison_with_mean_and_std(history_comparison_dict, to_file='training_history_comparison_with_mean_and_std.png', to_folder=None, xlabel='Epochs', ylabel='Scores', title='Training History Comparison with Mean and Std', grid=True, alpha=0.2, metrics_filter=None, linestyle_cycle=None, **kwargs)
Plots comparison of training histories with mean and standard deviation across conditions.
Calculates mean and standard deviation for each condition across multiple runs and displays them as line plots with error bands for comparison.
Code Example:
# Compare training histories from different models with multiple runs each
history_comparison = {
"Model A": [history_a1, history_a2, history_a3],
"Model B": [history_b1, history_b2, history_b3]
}
synalinks.utils.plot_history_comparison_with_mean_and_std(history_comparison)
Parameters:
Name | Type | Description | Default |
---|---|---|---|
history_comparison_dict
|
dict
|
Dictionary where keys are condition names and values are lists of History objects. Format: {"condition1": [history1, history2, ...], ...} |
required |
to_file
|
str
|
The file path where the plot will be saved. Default to "training_history_comparison_with_mean_and_std.png". |
'training_history_comparison_with_mean_and_std.png'
|
to_folder
|
str
|
The folder where the plot will be saved. If provided, will be combined with to_file. |
None
|
xlabel
|
str
|
Optional. The label for the x-axis. Default to "Epochs". |
'Epochs'
|
ylabel
|
str
|
Optional. The label for the y-axis. Default to "Scores". |
'Scores'
|
title
|
str
|
Optional. The title of the plot. Default to "Training History Comparison with Mean and Std". |
'Training History Comparison with Mean and Std'
|
grid
|
bool
|
Whether to display the grid on the plot. Default to True. |
True
|
alpha
|
float
|
The transparency of the standard deviation area. Default to 0.2. |
0.2
|
metrics_filter
|
list
|
List of specific metrics to plot. If None, all metrics will be plotted. |
None
|
linestyle_cycle
|
list
|
List of line styles to cycle through for conditions (Default to ['-', '--', '-.', ':']). |
None
|
**kwargs
|
keyword arguments
|
Additional keyword arguments
forwarded to |
{}
|
Raises:
Type | Description |
---|---|
ValueError
|
If history_comparison_dict is empty, has inconsistent structures, or if there are unrecognized keyword arguments. |
Returns:
Type | Description |
---|---|
Image | Image | str
|
If running in a Jupyter notebook, returns an IPython Image object for inline display. If running in a Marimo notebook returns a marimo image. Otherwise returns the filepath where the image has been saved. |
Source code in synalinks/src/utils/plot_history.py
453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 490 491 492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 590 591 592 593 594 595 596 597 598 599 600 601 602 603 604 605 606 607 608 609 610 611 612 613 614 615 616 617 618 619 620 621 622 623 624 625 626 627 628 629 630 631 632 633 634 635 636 637 638 639 640 641 642 643 644 645 646 647 648 649 650 651 652 653 654 655 656 657 |
|

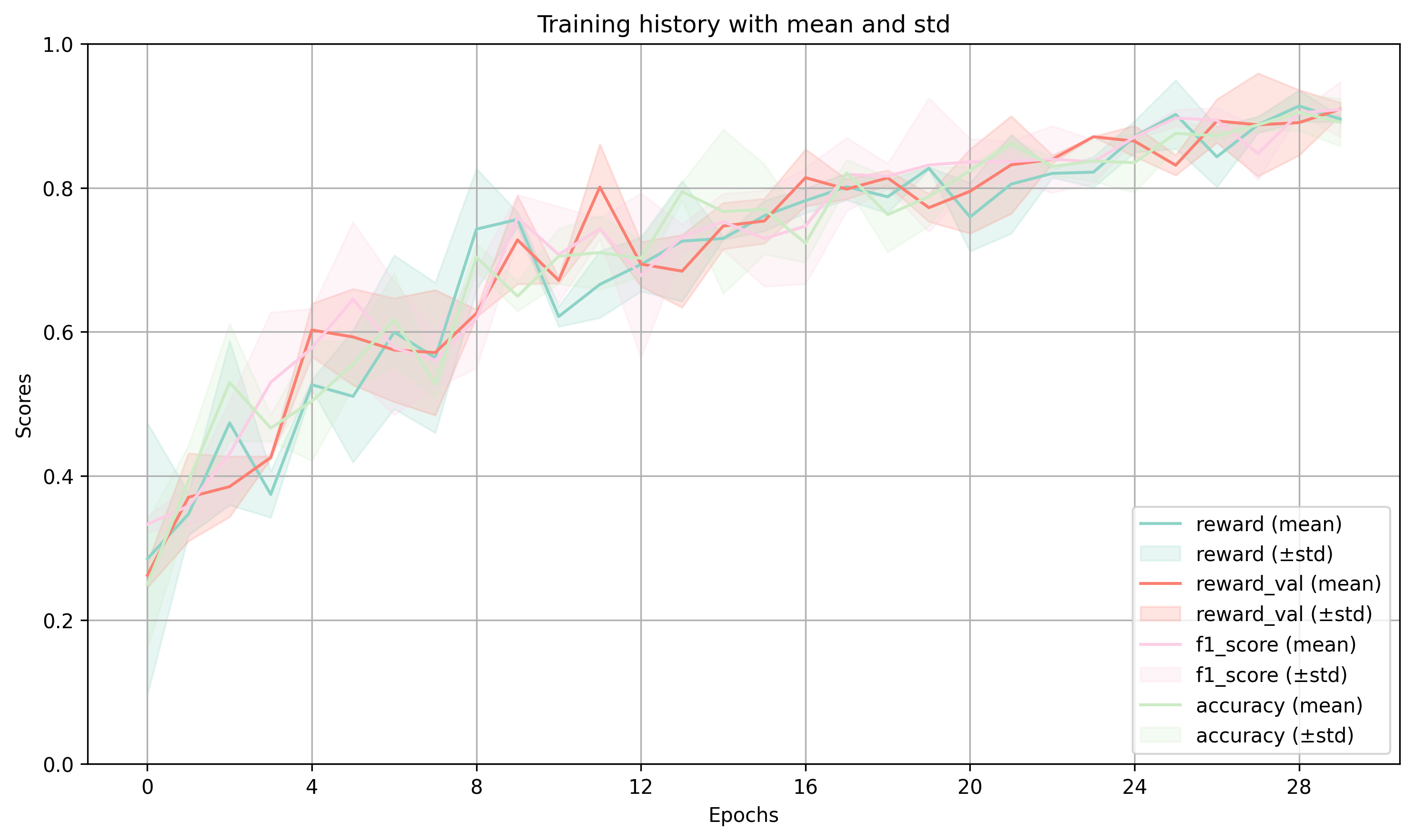

plot_history_with_mean_and_std(history_list, to_file='training_history_with_mean_and_std.png', to_folder=None, xlabel='Epochs', ylabel='Scores', title='Training history with mean and std', grid=True, alpha=0.2, metrics_filter=None, **kwargs)
Plots the mean and standard deviation of multiple training history list.
This function takes a list of history objects from multiple runs of the same model and plots the mean and standard deviation for each metric.
Code Example:
program.compile(...)
history_list = []
for i in range(5): # run 5 times
history = await program.fit(...)
history_list.append(history)
synalinks.utils.plot_history_with_mean_and_std(history_list)
Example:
Parameters:
Name | Type | Description | Default |
---|---|---|---|
history_list
|
list
|
A list of History objects from multiple runs. |
required |
to_file
|
str
|
The file path where the plot will be saved. Default to "training_history_with_mean_and_std.png". |
'training_history_with_mean_and_std.png'
|
to_folder
|
str
|
The folder where the plot will be saved. If provided, will be combined with to_file. |
None
|
xlabel
|
str
|
Optional. The label for the x-axis. Default to "Epochs". |
'Epochs'
|
ylabel
|
str
|
Optional. The label for the y-axis. Default to "Scores". |
'Scores'
|
title
|
str
|
Optional. The title of the plot. Default to "Training history with mean and std". |
'Training history with mean and std'
|
grid
|
bool
|
Whether to display the grid on the plot. Default to True. |
True
|
alpha
|
float
|
The transparency of the standard deviation area. Default to 0.2. |
0.2
|
metrics_filter
|
list
|
List of specific metrics to plot. If None, all metrics will be plotted. |
None
|
**kwargs
|
keyword arguments
|
Additional keyword arguments
forwarded to |
{}
|
Raises:
Type | Description |
---|---|
ValueError
|
If |
Returns:
Type | Description |
---|---|
Image | Image | str
|
If running in a Jupyter notebook, returns an IPython Image object for inline display. If running in a Marimo notebook returns a marimo image. Otherwise returns the filepath where the image has been saved. |
Source code in synalinks/src/utils/plot_history.py
119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 |
|

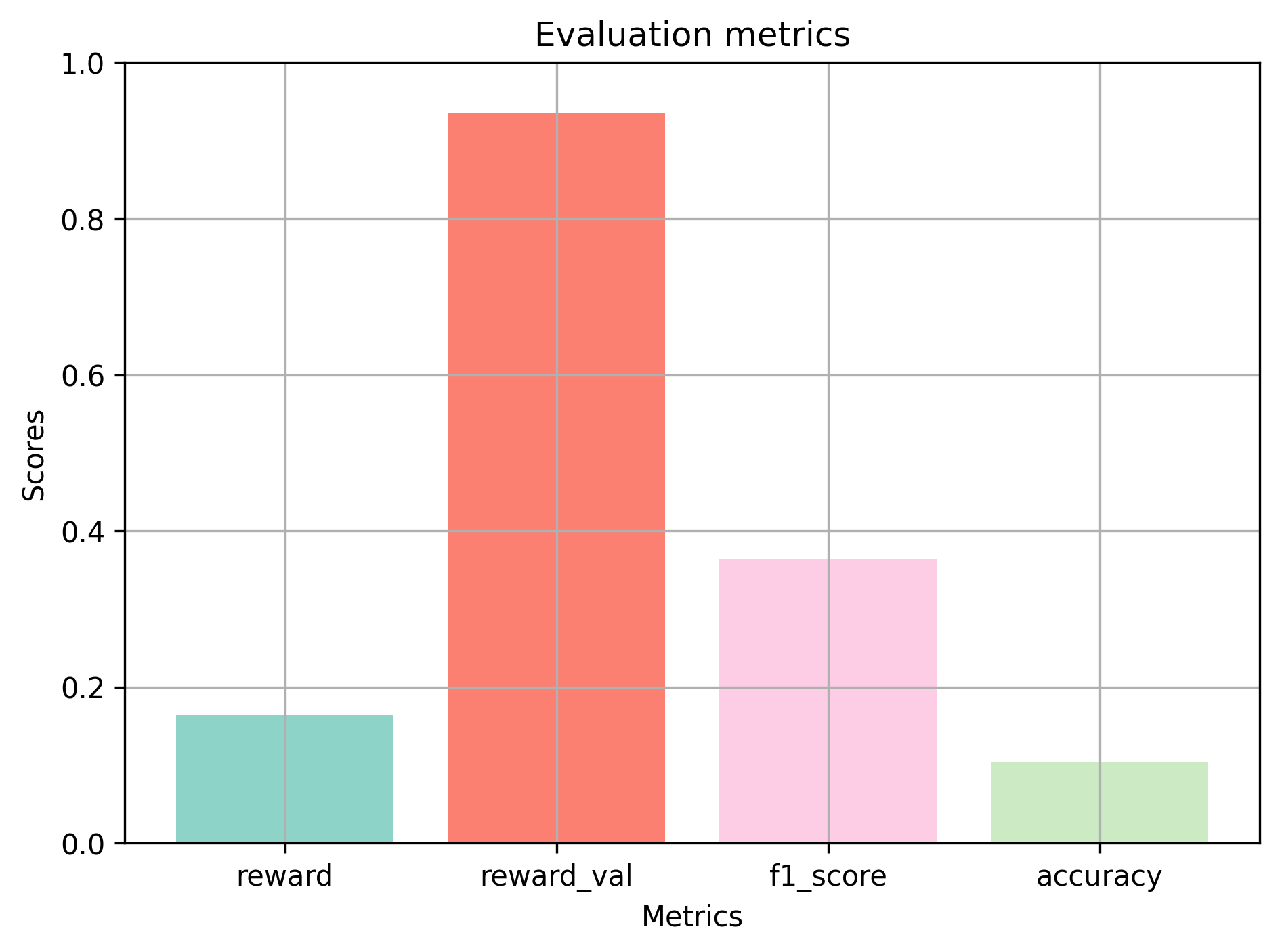

plot_metrics(metrics, to_file='evaluation_metrics.png', to_folder=None, xlabel='Metrics', ylabel='Scores', title='Evaluation metrics', grid=True, metrics_filter=None, **kwargs)
Plots the evaluation metrics of a program and saves it to a file.
Code Example:
Example:
Parameters:
Name | Type | Description | Default |
---|---|---|---|
metrics
|
dict
|
The metrics from a program evaluation. |
required |
to_file
|
str
|
The file path where the plot will be saved. Default to "evaluation_metrics.png". |
'evaluation_metrics.png'
|
to_folder
|
str
|
The folder where the plot will be saved. If provided, will be combined with to_file. |
None
|
xlabel
|
str
|
Optional. The label for the x-axis. Default to "Metrics". |
'Metrics'
|
ylabel
|
str
|
Optional. The label for the y-axis. Default to "Scores". |
'Scores'
|
title
|
str
|
Optional. The title of the plot. Default to "Evaluation metrics". |
'Evaluation metrics'
|
grid
|
bool
|
Whether to display the grid on the plot. Default to True. |
True
|
metrics_filter
|
list
|
List of specific metrics to plot. If None, all metrics will be plotted. |
None
|
**kwargs
|
keyword arguments
|
Additional keyword arguments
forwarded to |
{}
|
Raises:
Type | Description |
---|---|
ValueError
|
If there are unrecognized keyword arguments. |
Returns:
Type | Description |
---|---|
Image | Image | str
|
If running in a Jupyter notebook, returns an IPython Image object for inline display. If running in a Marimo notebook returns a marimo image. Otherwise returns the filepath where the image has been saved. |
Source code in synalinks/src/utils/plot_metrics.py
12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 |
|

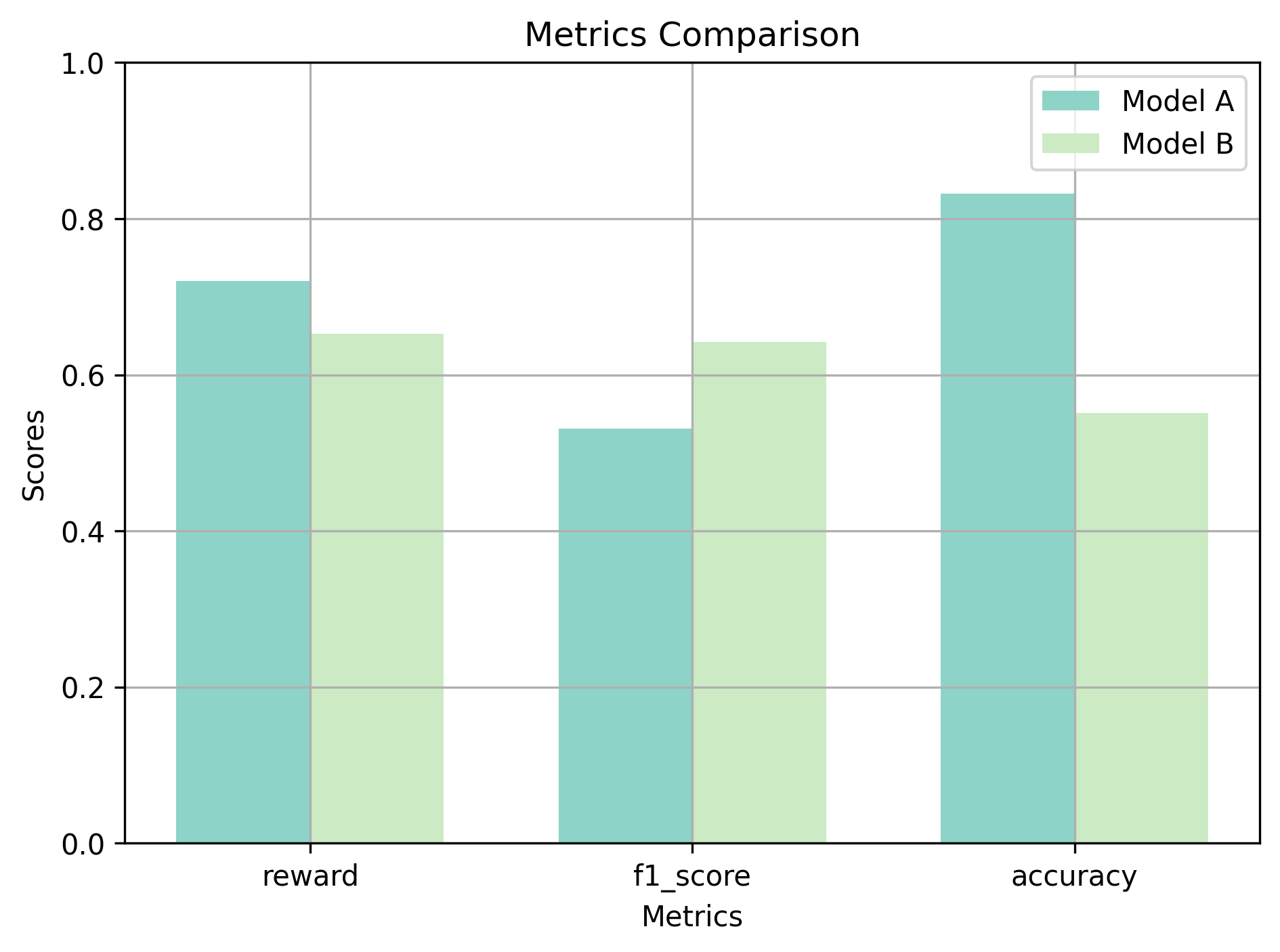

plot_metrics_comparison(metrics_dict, to_file='evaluation_metrics_comparison.png', to_folder=None, xlabel='Metrics', ylabel='Scores', title='Metrics Comparison', grid=True, metrics_filter=None, bar_width=0.35, **kwargs)
Plots comparison of evaluation metrics across different runs/models/conditions.
Code Example:
# Compare metrics from different models
metrics_comparison = {
"Program A": metrics_a,
"Program B": metrics_b,
"Program C": metrics_c,
}
synalinks.utils.plot_metrics_comparison(metrics_comparison)
Parameters:
Name | Type | Description | Default |
---|---|---|---|
metrics_dict
|
dict
|
Dictionary where keys are condition names (e.g., model names) and values are metrics dictionaries. Format: {"condition1": {"metric1": value1, "metric2": value2}, ...} |
required |
to_file
|
str
|
The file path where the plot will be saved. Default to "evaluation_metrics_comparison.png". |
'evaluation_metrics_comparison.png'
|
to_folder
|
str
|
The folder where the plot will be saved. If provided, will be combined with to_file. |
None
|
xlabel
|
str
|
Optional. The label for the x-axis. Default to "Metrics". |
'Metrics'
|
ylabel
|
str
|
Optional. The label for the y-axis. Default to "Scores". |
'Scores'
|
title
|
str
|
Optional. The title of the plot. Default to "Metrics Comparison". |
'Metrics Comparison'
|
grid
|
bool
|
Whether to display the grid on the plot. Default to True. |
True
|
metrics_filter
|
list
|
List of specific metrics to plot. If None, all metrics will be plotted. |
None
|
bar_width
|
float
|
Width of the bars. Default to 0.35. |
0.35
|
**kwargs
|
keyword arguments
|
Additional keyword arguments
forwarded to |
{}
|
Raises:
Type | Description |
---|---|
ValueError
|
If metrics_dict is empty, has inconsistent metric names, or if there are unrecognized keyword arguments. |
Returns:
Type | Description |
---|---|
Image | Image | str
|
If running in a Jupyter notebook, returns an IPython Image object for inline display. If running in a Marimo notebook returns a marimo image. Otherwise returns the filepath where the image has been saved. |
Source code in synalinks/src/utils/plot_metrics.py
121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 |
|

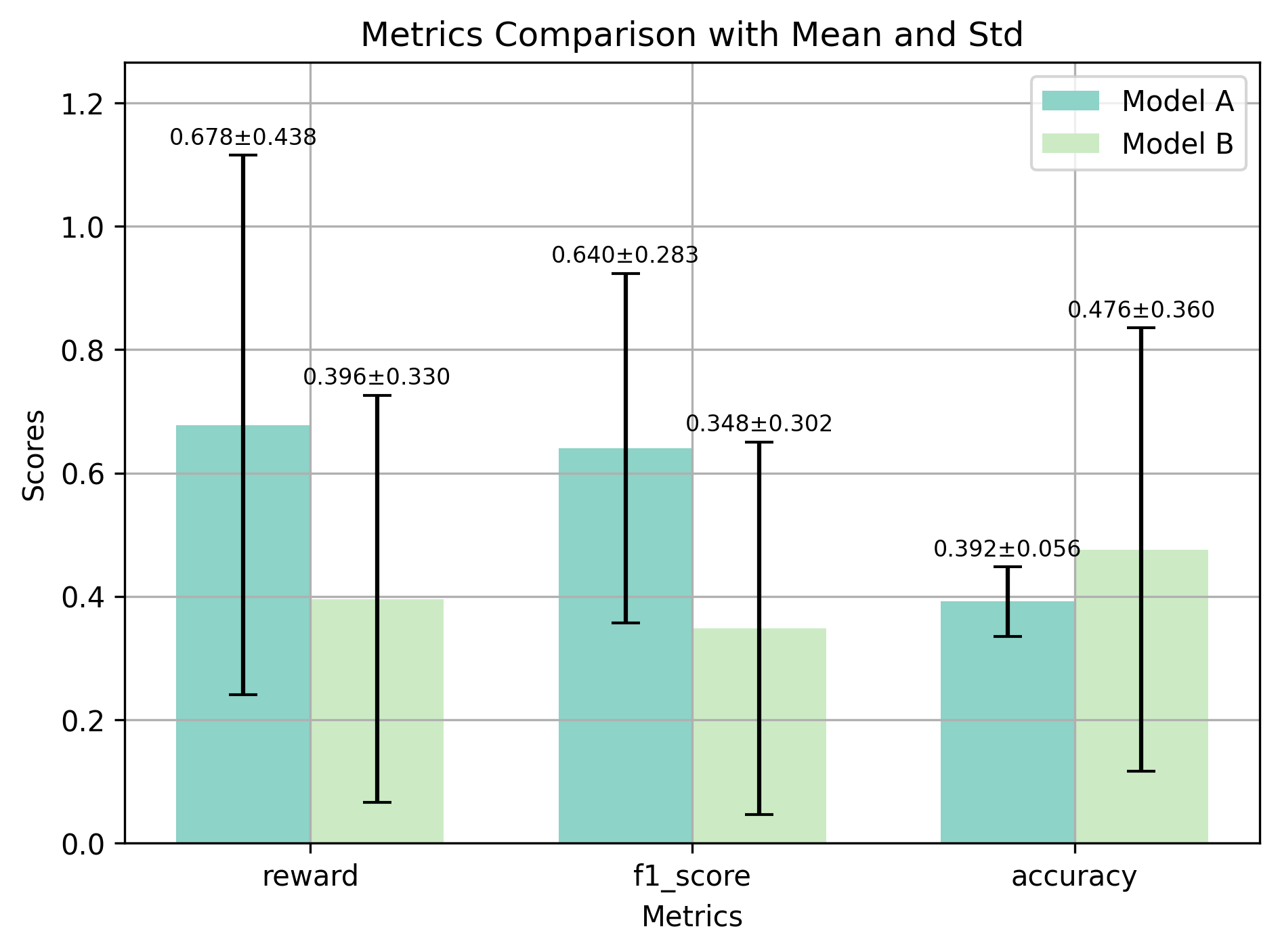

plot_metrics_comparison_with_mean_and_std(metrics_comparison_dict, to_file='evaluation_metrics_comparison_with_mean_and_std.png', to_folder=None, xlabel='Metrics', ylabel='Scores', title='Metrics Comparison with Mean and Std', grid=True, show_values=False, capsize=5, metrics_filter=None, bar_width=0.35, **kwargs)
Plots comparison of evaluation metrics with mean and standard deviation across conditions.
Calculates mean and standard deviation for each condition across multiple runs and displays them as grouped bar plots with error bars for comparison.
Code Example:
# Compare metrics from different models with multiple runs each
metrics_comparison = {
"Program A": metrics_list_a,
"Program B": metrics_list_b
}
synalinks.utils.plot_metrics_comparison_with_mean_and_std(
metrics_comparison,
show_values=True,
)
Parameters:
Name | Type | Description | Default |
---|---|---|---|
metrics_comparison_dict
|
dict
|
Dictionary where keys are condition names and values are lists of metrics dictionaries. Format: {"condition1": [{"metric1": val, "metric2": val}, ...], ...} |
required |
to_file
|
str
|
The file path where the plot will be saved. Default to "evaluation_metrics_comparison_with_mean_and_std.png". |
'evaluation_metrics_comparison_with_mean_and_std.png'
|
to_folder
|
str
|
The folder where the plot will be saved. If provided, will be combined with to_file. |
None
|
xlabel
|
str
|
Optional. The label for the x-axis. Default to "Metrics". |
'Metrics'
|
ylabel
|
str
|
Optional. The label for the y-axis. Default to "Scores". |
'Scores'
|
title
|
str
|
Optional. The title of the plot. Default to "Metrics Comparison with Mean and Std". |
'Metrics Comparison with Mean and Std'
|
grid
|
bool
|
Whether to display the grid on the plot. Default to True. |
True
|
show_values
|
bool
|
Whether to display mean values on top of bars (Default to False). |
False
|
capsize
|
float
|
Size of the error bar caps. Default to 5. |
5
|
metrics_filter
|
list
|
List of specific metrics to plot. If None, all metrics will be plotted. |
None
|
bar_width
|
float
|
Width of the bars. Default to 0.35. |
0.35
|
**kwargs
|
keyword arguments
|
Additional keyword arguments
forwarded to |
{}
|
Raises:
Type | Description |
---|---|
ValueError
|
If metrics_comparison_dict is empty, has inconsistent structures, or if there are unrecognized keyword arguments. |
Returns:
Type | Description |
---|---|
Image | Image | str
|
If running in a Jupyter notebook, returns an IPython Image object for inline display. If running in a Marimo notebook returns a marimo image. Otherwise returns the filepath where the image has been saved. |
Source code in synalinks/src/utils/plot_metrics.py
273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480 481 482 483 484 485 486 487 488 489 |
|
plot_metrics_with_mean_and_std(metrics_list, to_file='evaluation_metrics_with_mean_and_std.png', to_folder=None, xlabel='Metrics', ylabel='Scores', title='Evaluation metrics with mean and std', grid=True, show_values=False, capsize=5, metrics=None, **kwargs)
Plots the evaluation metrics with mean and standard deviation error bars.
Calculates mean and standard deviation across multiple evaluation runs and displays them as bar plots with error bars.
Code Example:
program.compile(...)
metrics_list = []
for i in range(5): # Multiple evaluation runs
metrics = await program.evaluate(...)
metrics_list.append(metrics)
synalinks.utils.plot_metrics_with_mean_and_std(metrics_list)

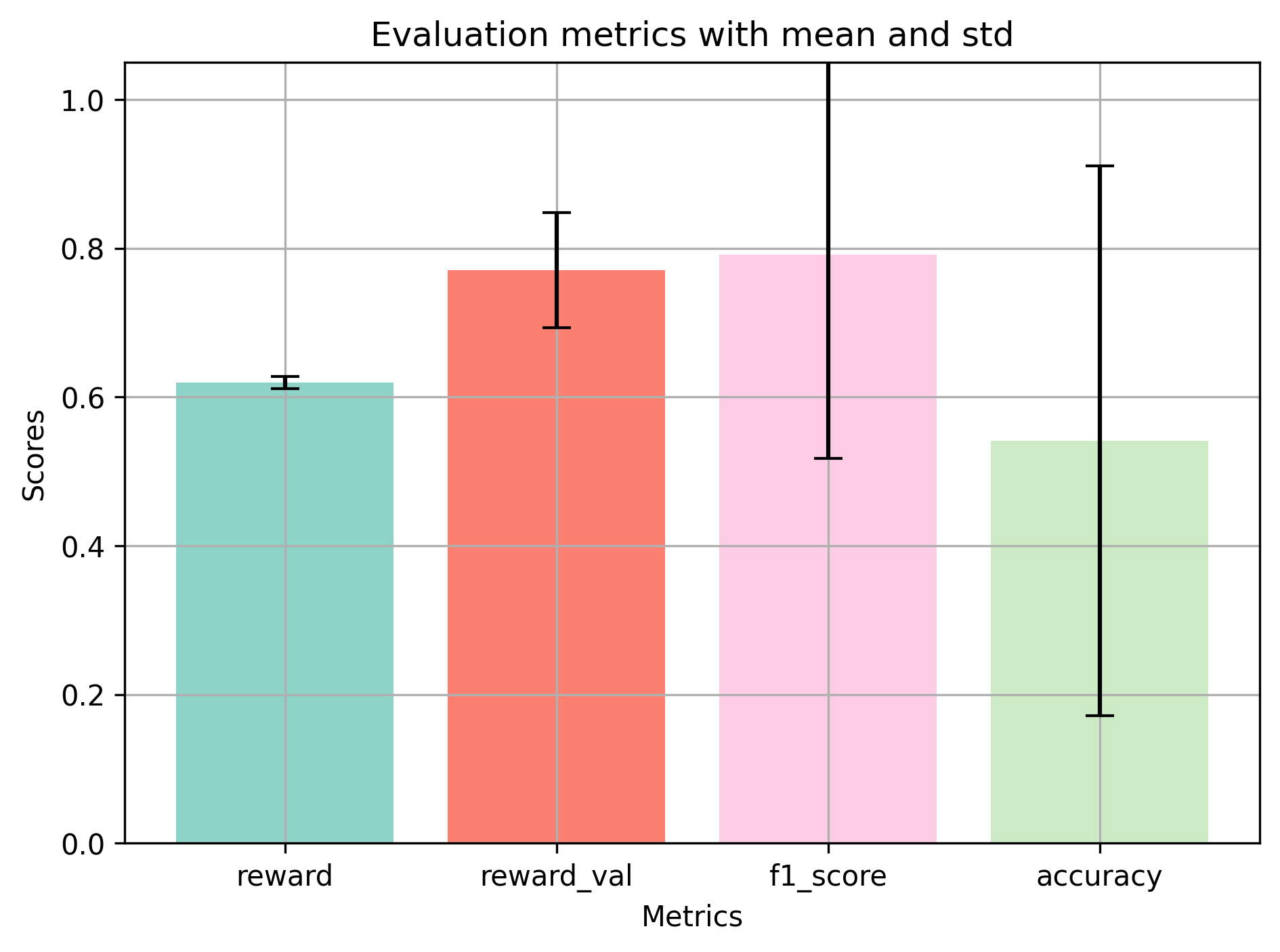

Example:
Parameters:
Name | Type | Description | Default |
---|---|---|---|
metrics_list
|
list[dict]
|
List of metrics dictionaries from multiple program evaluations. Each dict should have format: {'metric_name': float_value, ...} |
required |
to_file
|
str
|
The file path where the plot will be saved. Default to "evaluation_metrics_with_mean_and_std.png". |
'evaluation_metrics_with_mean_and_std.png'
|
to_folder
|
str
|
The folder where the plot will be saved. If provided, will be combined with to_file. |
None
|
xlabel
|
str
|
Optional. The label for the x-axis. Default to "Metrics". |
'Metrics'
|
ylabel
|
str
|
Optional. The label for the y-axis. Default to "Scores". |
'Scores'
|
title
|
str
|
Optional. The title of the plot. Default to "Evaluation metrics with mean and std". |
'Evaluation metrics with mean and std'
|
grid
|
bool
|
Whether to display the grid on the plot. Default to True. |
True
|
show_values
|
bool
|
Whether to display mean values on top of bars (Default to True). |
False
|
capsize
|
float
|
Size of the error bar caps. Default to 5. |
5
|
metrics
|
list
|
List of specific metrics to plot. If None, all metrics will be plotted. |
None
|
**kwargs
|
keyword arguments
|
Additional keyword arguments
forwarded to |
{}
|
Raises:
Type | Description |
---|---|
ValueError
|
If metrics_list is empty, not a list, contains inconsistent metric names, or if there are unrecognized keyword arguments. |
Returns:
Type | Description |
---|---|
Image | Image | str
|
If running in a Jupyter notebook, returns an IPython Image object for inline display. If running in a Marimo notebook returns a marimo image. Otherwise returns the filepath where the image has been saved. |
Source code in synalinks/src/utils/plot_metrics.py
492 493 494 495 496 497 498 499 500 501 502 503 504 505 506 507 508 509 510 511 512 513 514 515 516 517 518 519 520 521 522 523 524 525 526 527 528 529 530 531 532 533 534 535 536 537 538 539 540 541 542 543 544 545 546 547 548 549 550 551 552 553 554 555 556 557 558 559 560 561 562 563 564 565 566 567 568 569 570 571 572 573 574 575 576 577 578 579 580 581 582 583 584 585 586 587 588 589 590 591 592 593 594 595 596 597 598 599 600 601 602 603 604 605 606 607 608 609 610 611 612 613 614 615 616 617 618 619 620 621 622 623 624 625 626 627 628 629 630 631 632 633 634 635 636 637 638 639 640 641 642 643 644 645 646 647 648 649 650 651 652 |
|
