Implementing custom modules & programs via subclassing

This tutorial, is for more advanced users, it will cover how to create custom modules/programs via subclassing.

In this tutorial, we will cover the following themes:

The Module class
The add_variable() method
Trainable and non-trainable variables
The compute_output_spec() and build() method
The training argument in call()
Making sure your module/program can be serialized

One of the main abstraction of Synalinks is the Module class. A Module encapsulate both a state (the module's variables) and a transformation from inputs to outputs (the call() method).

For this tutorial, we are going to make a simple neuro-symbolic component called BacktrackingOfThought. This component is an adaptation of the famous backtracking algorithm, used a lot in symbolic planning/reasoning, combined with chain of thought, nowadays most used technique to enhance the LMs predicitons.

The principle is straitforward, the component will have to "think" then we will critique at runtime the thinking and aggregate it to the current chain of thinking only if it is above the given threshold. This mechanism will allow the system to discard bad thinking to resume at the previsous step. Additionally we will add a stop condition.

This algorithm a simplified version of the popular TreeOfThought that instead of being a tree strucutre, is only a sequential chain of thinking.

import synalinks
import asyncio

class Query(synalinks.DataModel):
    query: str = synalinks.Field(
        description="The user query",
    )

class Answer(synalinks.DataModel):
    answer: str = synalinks.Field(
        description="The correct answer",
    )

language_model = synalinks.LanguageModel(
    model="ollama/mistral",
)

class BacktrackingOfThought(synalinks.Module):
    def __init__(
        self,
        schema=None,
        data_model=None,
        language_model=None,
        backtracking_threshold=0.5,
        stop_threshold=0.9,
        max_iterations=5,
        return_inputs=False,
        prompt_template=None,
        examples=None,
        instructions=None,
        use_inputs_schema=False,
        use_outputs_schema=False,
        name=None,
        description=None,
        trainable=True,
    ):
        super().__init__(
            name=name,
            description=description,
            trainable=trainable,
        )
        if not schema and data_model:
            schema = data_model.get_schema()
        self.schema = schema
        self.language_model = language_model
        self.backtracking_threshold = backtracking_threshold
        self.stop_threshold = stop_threshold
        self.max_iterations = max_iterations
        self.return_inputs = return_inputs
        self.prompt_template = prompt_template
        self.examples = examples
        self.instructions = instructions
        self.use_inputs_schema = use_inputs_schema
        self.use_outputs_schema = use_outputs_schema

        self.thinking = []
        for i in range(self.max_iterations):
            self.thinking.append(
                synalinks.ChainOfThought(
                    schema=self.schema,
                    language_model=self.language_model,
                    prompt_template=self.prompt_template,
                    examples=self.examples,
                    return_inputs=False,
                    instructions=self.instructions,
                    use_inputs_schema=self.use_inputs_schema,
                    use_outputs_schema=self.use_outputs_schema,
                    name=self.name + f"_thinking_generator_{i}",
                )
            )
        self.critique = []
        for i in range(self.max_iterations):
            self.critique.append(
                synalinks.SelfCritique(
                language_model=self.language_model,
                prompt_template=self.prompt_template,
                examples=self.examples,
                return_inputs=True,
                instructions=self.instructions,
                use_inputs_schema=self.use_inputs_schema,
                use_outputs_schema=self.use_outputs_schema,
                name=self.name + f"_critique_generator_{i}",
            )
        )
        # This is going to be the final generator
        self.generator = synalinks.Generator(
            schema=self.schema,
            language_model=self.language_model,
            prompt_template=self.prompt_template,
            examples=self.examples,
            return_inputs=self.return_inputs,
            instructions=self.instructions,
            use_inputs_schema=self.use_inputs_schema,
            use_outputs_schema=self.use_outputs_schema,
            name=self.name + "_generator",
        )

    async def call(self, inputs, training=False):
        if not inputs:
            # This is to allow logical flows
            # (e.g. don't run the module if no inputs provided)
            return None
        for i in range(self.max_iterations):
            thinking = await self.thinking[i](
                inputs,
                training=training,
            )
            critique = await self.critique[i](
                thinking,
                training=training,
            )
            reward = critique.get("reward")
            if reward > self.backtracking_threshold:
                inputs = await synalinks.ops.concat(
                    inputs,
                    critique,
                    name=self.name + f"_inputs_with_thinking_{i}",
                )
                if reward > self.stop_threshold:
                    break
        return await self.generator(
            inputs,
            training=training,
        )

    async def compute_output_spec(self, inputs, training=False):
        for i in range(self.max_iterations):
            inputs = await self.thinking[i](inputs)
            inputs = await self.critique[i](inputs)
        return await self.generator(inputs)

    def get_config(self):
        config = {
            "schema": self.schema,
            "backtracking_threshold": self.backtracking_threshold,
            "stop_threshold": self.stop_threshold,
            "max_iterations": self.max_iterations,
            "return_inputs": self.return_inputs,
            "prompt_template": self.prompt_template,
            "examples": self.examples,
            "instructions": self.instructions,
            "use_inputs_schema": self.use_inputs_schema,
            "use_outputs_schema": self.use_outputs_schema,
            "name": self.name,
            "description": self.description,
            "trainable": self.trainable,
        }
        language_model_config = {
            "language_model": synalinks.saving.serialize_synalinks_object(
                self.language_model,
            )
        }
        return {**language_model_config, **config}

    @classmethod
    def from_config(cls, config):
        language_model = synalinks.saving.deserialize_synalinks_object(
            config.pop("language_model")
        )
        return cls(
            language_model=language_model,
            **config,
        )

async def main():

    inputs = synalinks.Input(data_model=Query)
    outputs = await BacktrackingOfThought(
        language_model=language_model,
        data_model=Answer,
        return_inputs=True,
    )(inputs)

    program = synalinks.Program(
        inputs=inputs,
        outputs=outputs,
        name="backtracking_of_thought",
        description="A Backtracking of Thought algorithm",
    )

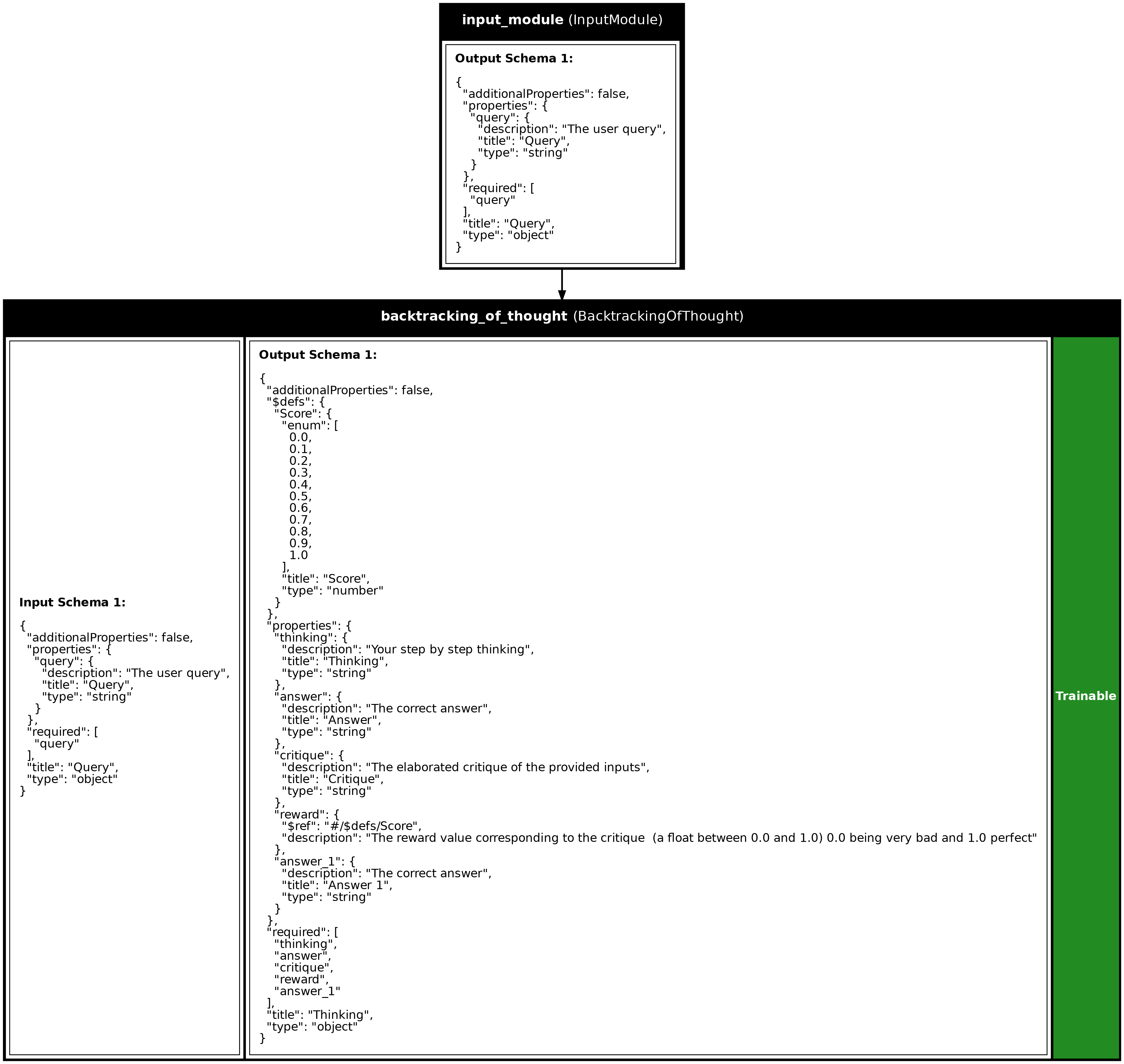

    synalinks.utils.plot_program(
        program,
        to_folder="examples/implementing_custom_modules_and_programs_via_subclassing",
        show_module_names=True,
        show_trainable=True,
        show_schemas=True,
    )

    result = await program(
        Query(query=(
              "How can we develop a scalable, fault-tolerant, and secure quantum"
              " computing system that can solve problems intractable for classical"
              " computers, and what are the practical implications for cryptography"
              " and data security?"
            )
        )
    )

    print(result.prettify_json())

if __name__ == "__main__":
    asyncio.run(main())

Result

{
  "query": "How can we develop a scalable, fault-tolerant, and secure quantum computing system that can solve problems intractable for classical computers, and what are the practical implications for cryptography and data security?",
  "thinking": "Thinking...",
  "answer": "Developing a scalable, fault-tolerant, and secure quantum computing system is a significant challenge due to the unique properties of quantum mechanics. Here's a simplified approach: First, you would need to establish a robust quantum hardware platform such as qubits (quantum bits) made of superconducting circuits or trapped ions. Next, develop error-correcting codes to mitigate errors that naturally occur in quantum systems. Additionally, implement quantum algorithms suitable for the problem at hand, such as Shor's algorithm for factoring large numbers, which is resistant to classical computers but can be solved quickly on a quantum computer. The practical implications for cryptography and data security are profound. Quantum computing could potentially break many of today's encryption methods based on number factorization (e.g., RSA). Therefore, it's essential to develop post-quantum cryptographic algorithms that are resilient against attacks from both classical and quantum computers.",
  "critique": "Your response is detailed, informative, and well-structured. It explains the challenges involved in developing a quantum computing system, provides a simplified approach to solving these challenges, and highlights the potential implications for cryptography and data security. The use of examples such as Shor's algorithm and RSA encryption method adds credibility to your response. However, it might be helpful to break down the process into smaller steps or bullet points for easier comprehension.",
  "reward": 1.0,
  "answer_1": "Developing a scalable, fault-tolerant, and secure quantum computing system is indeed a complex task due to the intricacies of quantum mechanics. Here's a simplified roadmap: \n1. Establishing a robust quantum hardware platform using qubits made from superconducting circuits or trapped ions.\n2. Developing error-correcting codes to combat errors inherent in quantum systems.\n3. Implementing suitable quantum algorithms, like Shor's algorithm for factoring large numbers, which are resistant to classical computers but can be solved quickly on a quantum computer.\nRegarding cryptography and data security, the implications are substantial. Quantum computing could potentially breach many existing encryption methods based on number factorization (such as RSA). Consequently, it's crucial to develop post-quantum cryptographic algorithms that can withstand attacks from both classical and quantum computers."
}

The `init()` function

First, let's explain the __init__() function. When implementing modules that use a Generator, you want to externalize the generator's parameters (prompt_template, instructions, examples, use_inputs_schema, use_outputs_schema) to give maximum flexibility to your module when possible. Then, you have to include the default arguments of a module (name, description, trainable) that will be provided to the super().__init__(). Although the name and description are inferred automatically it is a good practice to let the user personalize them. The trainable argument, will indicate if the module is frozen or not, meaning that their variables could be updated by the optimizer, by default, a module should be trainable.

And finally, you can add any relevant information, weither for the initialization of the variables, or a config parameter like here.

To add a variable to the module, you have to use the add_variables function, this function can only be used in the __init__() or in the build() function. The build function is useful to create variables, or initialize your module/program based on the actual inputs, that is not known at this stage, remember the module can accept any inputs.

How to know when using a `Variable`?

As a rule of thumb, the variables should be anything that evolve over time during inference/training. These variables could be updated by the module itself, or by the optimizer if you have an optimizer designed for that. They will be serialized when you save your program so you can recover the state of your program by loading a JSON file. In this example, the variables are encapsulated in the Generator module.

The `call()` function

The call() function is the core of the Module class. It defines the computation performed at every call of the module. This function takes inputs and an optional training argument, which indicates whether the module is in training mode or not.

In the BacktrackingOfThought module, the call() function implements the backtracking logic:

It iterates up to max_iterations times.
In each iteration, it generates a "thinking" step using the thinking generator.
It then critiques the generated thinking using either a provided critique program or a reward value embedded in the thinking step.
If the reward exceeds the backtracking_threshold, the thinking step is concatenated with the inputs for the next iteration.
If the reward exceeds the stop_threshold, the iteration stops early.
Finally, the generator produces the final output based on the accumulated inputs.

The `compute_output_spec()` function

The compute_output_spec() function is responsible for defining the output data model of the module/program. It allows the system to understand the structure of the data produced by this module. Its inputs is always a SymbolicDataModel, a placeholder that only contains a JSON schema that serve as data specification.

In this example, compute_output_spec() returns a SymbolicDataModel based on the module's schema by calling the modules sequentially, indicating the expected structure of the output data.

As a rule of thumb, if you access a data model field in your call (using get()) you will have to implement it otherwise, Synalinks will infer the output spec by running the call function with symbolic data models. If you have any doubt, do not implement it and the system will raise an error if you needs to.

Serialization and Deserialization

To ensure that your module can be saved and loaded correctly, you need to implement serialization and deserialization methods. This is crucial for saving the state of your module, including any trainable variables, and restoring it later.

The get_config() method should return a dictionary containing all the information needed to recreate the module. This includes the module's configuration and any serialized sub-components like the language model in this case.
The from_config() class method should be able to reconstruct the module from the configuration dictionary returned by get_config().

Conclusion

By following these guidelines, you can create custom modules in Synalinks that are flexible, reusable, and can be integrated into larger programs. The BacktrackingOfThought module demonstrates how to combine symbolic reasoning with language model predictions to enhance the decision-making process.

Key Takeaways

Module Class: The Module class in Synalinks encapsulates both state (variables) and transformation logic (call() method), serving as a foundational abstraction for building custom components.
Initialization and Variables: The init() function initializes the module, externalizing generator parameters for flexibility. Trainable and non-trainable variables are managed using the add_variables function, ensuring that the module's state can evolve over time and be serialized.
Call Function: The call() function defines the core computation of the module, handling inputs and producing outputs. In BacktrackingOfThought, it implements backtracking logic, iteratively generating and critiquing thinking steps to refine the output.
Output Specification: The compute_output_spec() function defines the output data model, allowing the system to understand the structure of the produced data. Implementing this function is crucial when accessing data model fields directly.
Serialization: Proper serialization and deserialization methods (get_config() and from_config()) ensure that the module's state can be saved and restored, facilitating reuse and integration into larger programs.
Flexibility and Reusability: By following these guidelines, you can create custom modules that are flexible, reusable, and easily integrated into neuro-symbolic programs. The BacktrackingOfThought module exemplifies how to combine symbolic reasoning with language models to improve decision-making processes.
